Detailed Description of Laser Cutting Nozzle Applications

Laser cutting nozzles are key consumable parts used to control assist-gas flow, stabilize the cutting process, protect the cutting head, and improve cutting quality. Different nozzle types are selected according to material type, sheet thickness, laser power, assist gas, and cutting requirement.

⸻

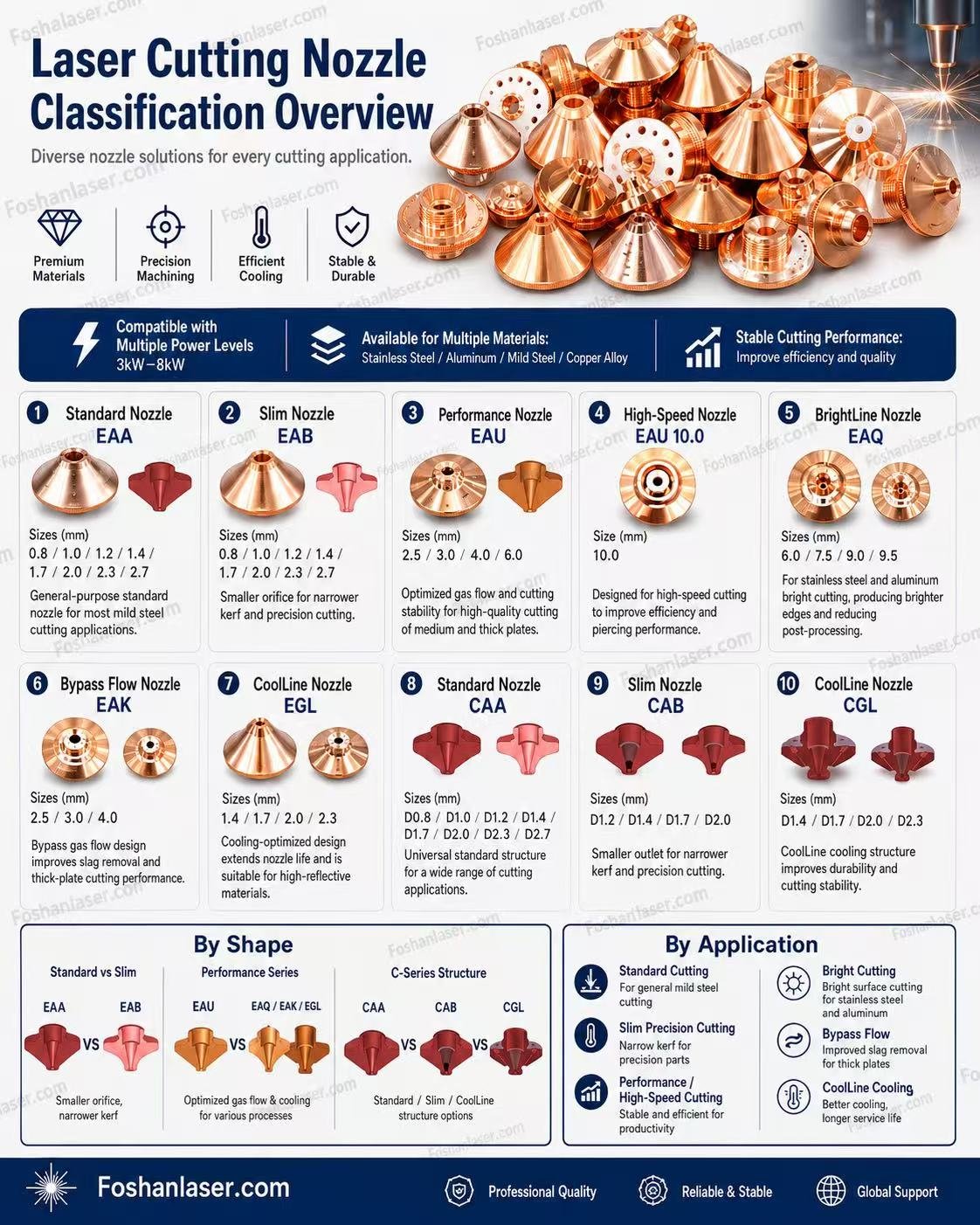

1. Standard Nozzle

Application:
Standard nozzles are used for general laser cutting applications, especially for common mild steel, stainless steel, and aluminum cutting.

Main functions:

Standard nozzles deliver assist gas evenly to the cutting area. They help remove molten material from the kerf, protect the lens from back spatter, and maintain stable cutting quality.

Suitable for:

Mild steel cutting with oxygen or nitrogen, stainless steel cutting with nitrogen, aluminum cutting, and general-purpose production.

Advantages:

They are widely compatible, easy to use, and suitable for most standard cutting tasks. Standard nozzles are usually the first choice when the cutting requirement is balanced between quality, speed, and cost.

⸻

2. Slim Nozzle

Application:
Slim nozzles are designed for narrow kerf cutting and precision cutting.

Main functions:

The smaller nozzle outlet concentrates the assist-gas flow, allowing more accurate cutting and better control of the cutting seam.

Suitable for:

Thin sheet cutting, fine contours, small holes, precision parts, and applications where a narrow kerf is required.

Advantages:

Slim nozzles can reduce material loss, improve edge accuracy, and help achieve finer cutting details. They are especially useful when the cutting path is narrow or the workpiece has small geometric features.

⸻

3. Performance Nozzle

Application:
Performance nozzles are used for stable and high-quality cutting, especially on medium and thick plates.

Main functions:

They optimize gas flow around the cutting zone, reduce turbulence, and improve cutting stability. This helps reduce dross, improve edge quality, and maintain consistent cutting performance.

Suitable for:

Medium-thickness mild steel, stainless steel, aluminum, and applications requiring stable edge quality.

Advantages:

Performance nozzles are suitable when higher quality and process stability are required. They help maintain a smoother cutting edge and reduce the need for secondary processing.

⸻

4. High-Speed Nozzle

Application:
High-speed nozzles are designed for high-productivity cutting.

Main functions:

They support faster cutting speeds by improving gas flow efficiency and molten material removal. They are often used in production environments where cutting efficiency is a priority.

Suitable for:

Batch production, high-speed cutting of selected materials, and applications where productivity is more important than maximum edge finish.

Advantages:

High-speed nozzles can improve cutting efficiency, shorten cycle time, and increase machine utilization. They are suitable for factories that need faster output.

⸻

5. BrightLine Nozzle

Application:
BrightLine nozzles are mainly used for high-quality bright cutting of stainless steel and aluminum.

Main functions:

They help produce a smoother and brighter cutting surface by improving gas flow distribution and stabilizing the cutting process.

Suitable for:

Stainless steel bright cutting, aluminum bright cutting, decorative parts, visible edges, and parts that require reduced post-processing.

Advantages:

BrightLine nozzles can improve edge brightness, reduce burrs, and reduce polishing or grinding work after cutting.

⸻

6. Bypass Flow Nozzle

Application:
Bypass Flow nozzles are designed to improve slag removal, especially in thicker plate cutting.

Main functions:

The bypass gas flow helps remove molten slag more effectively from the cutting kerf. This improves cutting performance on thicker materials and reduces dross formation.

Suitable for:

Thick plate cutting, difficult slag removal conditions, and applications where cutting residue must be reduced.

Advantages:

Bypass Flow nozzles improve slag discharge, reduce bottom dross, and help maintain more stable cutting quality on thicker plates.

⸻

7. CoolLine Nozzle

Application:
CoolLine nozzles are used for cooling-assisted cutting processes.

Main functions:

They support additional cooling around the cutting area, helping control heat input and reduce thermal influence on the material.

Suitable for:

Reflective materials, aluminum, copper alloy, thick plate cutting, and cutting processes where heat control is important.

Advantages:

CoolLine nozzles improve process stability, extend nozzle life, reduce thermal deformation, and help maintain better cutting quality over longer cutting periods.

⸻

8. Oxygen Cutting Nozzle Application

Application:
When oxygen is used as the assist gas, the nozzle helps guide oxygen into the cutting zone to support the oxidation reaction.

Suitable for:

Mild steel and carbon steel cutting.

Advantages:

Oxygen cutting provides strong cutting energy through oxidation, making it suitable for thicker mild steel plates. It can achieve efficient cutting with relatively lower laser power compared with nitrogen cutting.

⸻

9. Nitrogen Cutting Nozzle Application

Application:
When nitrogen is used as the assist gas, the nozzle delivers high-pressure nitrogen to blow molten material away without oxidation.

Suitable for:

Stainless steel, aluminum, and applications requiring clean, oxide-free edges.

Advantages:

Nitrogen cutting produces cleaner edges, avoids oxidation, and reduces discoloration. It is suitable for parts that require high surface quality or later welding, coating, or polishing.

⸻

10. Air Cutting Nozzle Application

Application:
Air cutting uses compressed air as the assist gas. The nozzle controls the compressed-air flow into the cutting area.

Suitable for:

Some mild steel, stainless steel, and aluminum applications where cost control is important.

Advantages:

Air cutting can reduce gas cost and is suitable for economical production. However, the cutting edge quality may not be as high as nitrogen cutting.

⸻

Website Product Description Version

Laser Cutting Nozzles for Different Materials and Cutting Processes

Our laser cutting nozzles are designed for stable gas flow, accurate cutting, and reliable performance in daily production. Different nozzle types are available for standard cutting, slim precision cutting, high-speed cutting, BrightLine cutting, Bypass Flow cutting, and CoolLine cooling-assisted cutting.

They are suitable for mild steel, stainless steel, aluminum, and other metal materials. By selecting the correct nozzle according to material, thickness, assist gas, and cutting process, users can improve cutting quality, reduce dross, achieve smoother edges, and increase production efficiency.

Main applications include:

Standard cutting, precision cutting, bright cutting, high-speed cutting, thick-plate slag removal, cooling-assisted cutting, oxygen cutting, nitrogen cutting, and air cutting.

Key benefits:

Stable cutting performance, better edge quality, improved gas flow, reduced slag, longer nozzle life, and higher production efficiency.
